CD1 type electric wire rope hoist

Production Details

Single Speed Electric Wire Rope Hoist Introduction

Electric wire rope hoist is a type of material handling equipment, installed on a single beam crane, linear curve strander beams or it can be used at the hoisting mechanism of double beam crane, gantry crane, linear crane for material handling by industrial and mining enterprises, railways, and warehouses, etc. The lifting capacity of single speed electric wire rope hoist is 0,5 to 32 ton and the working class is M3 and M4. The main parameters of electric wire rope hoist is as follow:

Capacity: 0.25ton to 32ton

Lifting height: 3-30m

Lifting speed: 0.35m/min-8m/min

Widely used in: warehouses, steel factory,injection aorkshop etc..

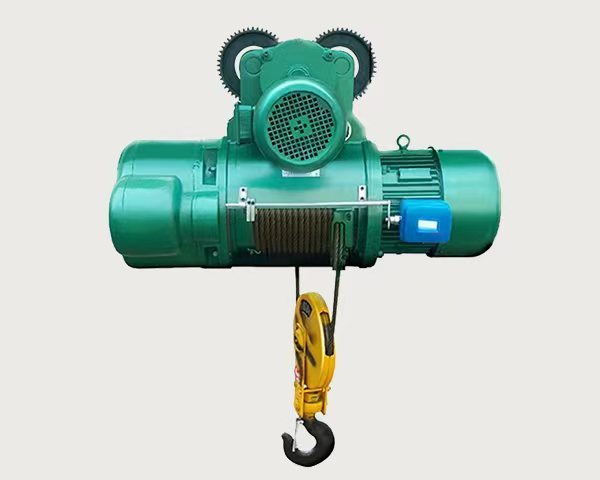

Electric wire rope hoist drawing

 Applications of Single Speed Electric Wire Rope Hoist

Electric wire rope hoist is widely used in various industries, such as, mining enterprises, railways, docks, warehouses, etc.

Advantages of Single Speed Electric Wire Rope Hoist

• Compact structure, light weight
• High safety and reliability
• Large lifting capacity and wide application
• High efficiency and long work life
• Easy operation and stable lifting
• Interchangeable components and easy maintenance

Production Features

Features of Single Speed Electric Wire Rope Hoist

The main features of electric wire rope hoist is as follow:

1. On lifting motor

• Asynchronous conical rotor motor is installed on electric wire rope hoist and the inside brake is also ensure the safety of the hoist.
• Large toque, stable operation, compact structure, small size, light weight
• Effective braking, safe operation, easy maintenance
• High safety with  B or F class insulation, IP44, IP54 protection.

2. On travelling motor

The travelling motor of electric wire rope hoist has the features of stable starting, effective braking, with fully covered B or F Class insulation, IP44, IP54 protection, IC0141 self-cooling, etc.

3. On lifting reducer

• High quality three-level dead axle helical gear rotating body ensures long serving life.
• Gear and axle is made of high intensity alloy steel which had been treated with heat.
• Box and cover are made from superior cast iron.
• Lifting reducer has great speed ration and high accuracy.
• Lifting reducer has compact structure, and is quiet during operation with high working efficiency.
• It is easy to assemble and disassemble.

4. On rope drum.

• Weld rope drum is light in terms of dead weight.
• Coil casing is made from superior cast iron with high intensity.
• Rope guide is used to avoid intertwining of wire rope and ensure the normal operation of electric wire rope hoist.
• No disturbance between rope sockets and has long working life.
• The rope drum is high quality and is easily interchangeable.

5. On steel wire rope.

The wire rope of electric wire rope hoist is mad of GB/T 20118-2006(6*37+1) hoisting wire rope, with the features of anti-tensile, good flexibility and good resistance to impact, long working life.

6. On hook.

The hook of electric wire rope hoist is made of high quality carbon steel which ensures high security, can bear triple static load. Equipped with spring–loaded sturdy safety catch, electric wire rope hoist is kept from releasing of slings.

7. On fire stopper.

Fire stopper is made of adjustable mechanical memory structure with high sensitivity, equipped with limiting stopper, preventing hook clashing the top. The fire stopper has the feature of high safety and durability, easy installation and debugging, sensitive reaction, small and exquisite, etc.

8. On overload limiter.

• Present the data based on your electric wire rope hoist working conditions.
• Show accurate weight value clearly.
• Modular, low power design, jam proof.
• Ensure the safe operation of electric wire rope hoist.
• Long service life of appliance components

9. On electrical part

Electric parts of the electric wire rope hoist have the features as follow:

• Control cabinet is with reasonable layout and easy to be repaired.
• Protection class IP55.
• Optional main power source is equipped on electric wire rope hoist.
• Safe trolley conductor with high conductivity and small pressure drop.
• Light dead weight, easy to install
• Collector ensures continuing power supply

10. Control Mode

Electric wire rope hoist has two control methods: pendant control and remote control, with features of easy, safe, waterproof anti fall, etc.
